Australia's no. 1 rated electric bike brand

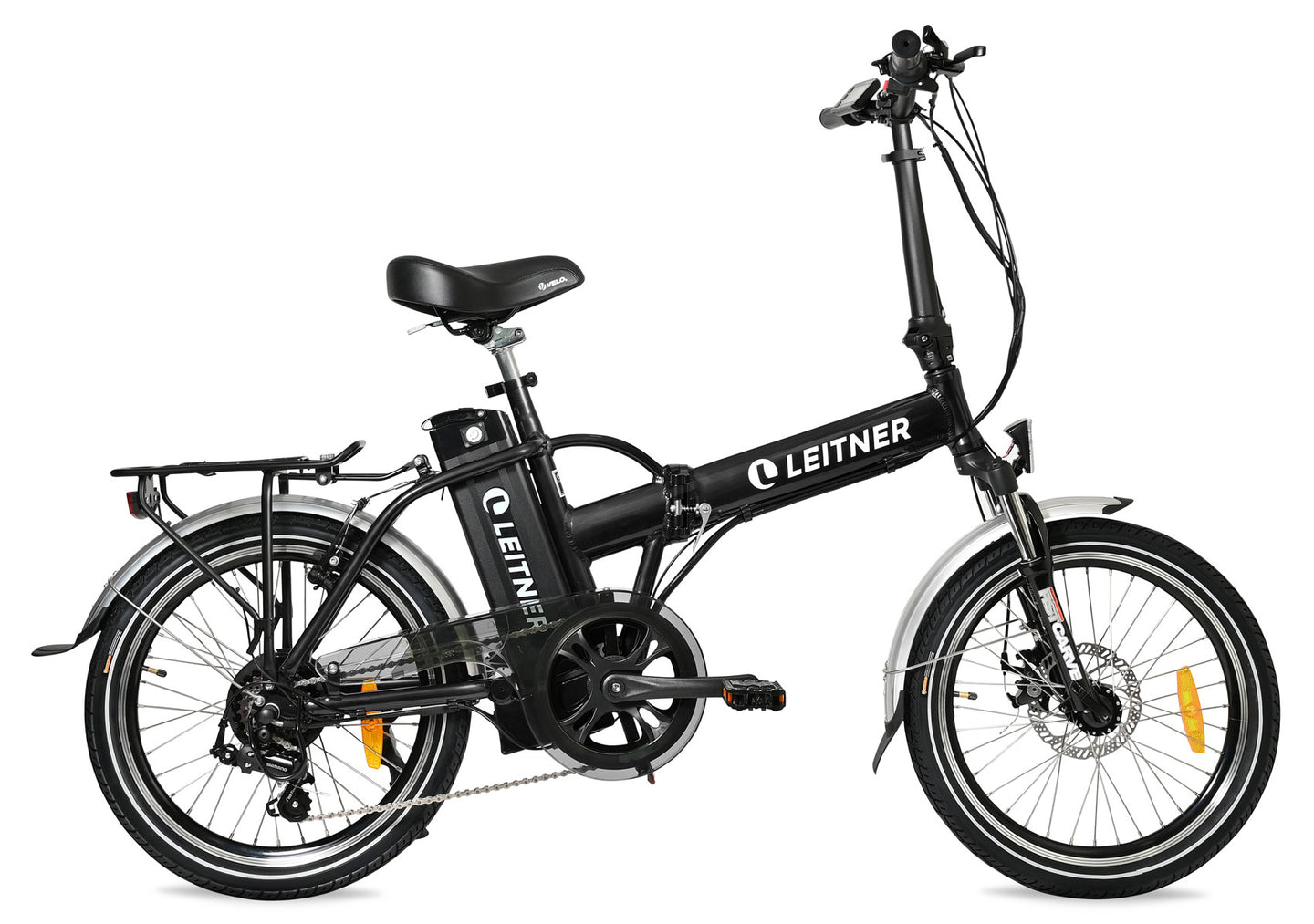

This award-winning folding electric bike has a step-over frame with 20" wheels making it the perfect electric bike for riders 5'2" and taller. Don't let the compact design fool you - the Tirol delivers the same power and sturdiness as its larger siblings. Save space and fold it in seconds if needed with integrated carry-handle on the frame.
Shipping cost calculated at checkout.
Electric Bike Features
Packed with features the Tirol Electric Bike will help you reach your destination in comfort and style.
- Genuine Samsung Lithium Battery Cells
- Seat height measured from ground to top of seat: Minimum 79.5 cm, Maximum: 99 cm
- No license required, top speed of 25 km/h
- Integrated bike computer with speedometer and odometer
- Puncture-resistant tyres with reflective sidewall striping
-
Estimated range with pedal assist mode:
9.6Ah/10Ah battery: 20-50km.
Upgraded 14.4Ah/15Ah battery: 30-75km
Upgraded 19.2Ah/20Ah battery: 40-100km - Includes $150 worth of extras: Mudguards, chainguard, front & rear lights, rear rack, stand, bell and tool-kit to help with assembly
- 36 Volt 250 Watts motor,
- Suits riders 5'2" (158 cm) and taller (guide only)
- Not sure which model is right for you? Read the quick guide.
Just The Right Amount Of Assistance
You hold the power at your fingertips - 5 levels of pedal assistance allow you to adjust the power to your needs. Climb hills with ease or cruise along at up to 25 km/h - the 250W motor will do the work for you. Feel like getting some exercise? Put the setting to low or switch the power off altogether if you feel like a real workout. Integrated speedometer and odometer.
Puncture-Resistant Tyres
Peace of mind with award-winning Kenda K-Shield puncture-resistant tyres.
Reflective Sidewall Striping
Be seen with reflective side-wall striping on your tyres providing a large reflective surface area for increased visibility and safety in low-light conditions.
Easy To Store
Whether it's the boot of your car, your camper-van or your garage, this ebike folds if needed to fit into tight spaces. The pedals fold too - a fantastic feature to save a few extra cm. Folded dimensions (~74cm high x 91cm long x 52 cm wide)
Removable Samsung Battery - Convenient And Secure
The battery is the most precious part of any Ebike. Therefore it's important to use quality parts such as Samsung battery cells which last for years. Unlock the battery with your security keys and remove it in seconds thanks to the seat which folds up. Charge it wherever it suits you best and protect it from theft. You can also charge the battery while it's on the bike. Push the button on top to check the charge.
Don't Feel Like Pedaling? Use The Throttle!
Twist the throttle for help at take-off and you can cruise along at 6km/h (walking speed). The red button is an additional safety feature to switch the throttle off to prevent accidental activation. Riding on private property and not on public roads? Unlock the throttle to go 25km/h without pedaling. Instructions provided in the manual.
Carry Your Favourite Things
The rear rack provides a platform to carry your favorite things - attach a basket or side bags to carry your groceries, work or sports gear - up to 25 kg.
Every Ride A Joy Ride
Ride for hours on this luxurious seat and still feel fresh. The front fork has suspension for a smooth ride also in bumpy situations. The handle-bars are slightly curved towards you and an adjustable handle-stem allows you to find your perfect riding position.
Arrive Clean - Every Time
This bike is a neat-freak so you don't have to be! Your beloved clothes are protected from dirt thanks to the full chain-cover, front and rear mudguards.
Arrive Safely At Your Destination
Stay safe in traffic with integrated front and rear lights powered by the main battery and a full set of reflectors. Stay in control with front TEKTRO disc brakes, rear V-brakes and a safety feature which will shut the motor off while braking.
Easy To Charge
Charge the battery at any standard power socket with the included charger. No need to wait until the battery is empty. Charge it at any time. It takes about 5 hours for a full charge and less for a partial charge.
Electric Dimensions - Folded
Electric Bike Dimensions
Detailed Electric Bike Technical Specifications | Click To Hide
| Motor | Rear wheel hub brushless geared motor by XOFO, 36V 250W, High Torque 43Nm. XOFO is Leitner's preferred motor supplier due to extremely high reliability outperforming Bafang motors in our experience. Leitner's partnership with XOFO goes back to 2013. |
| Frame | Aircraft-grade light-weight Aluminum Alloy 6061 |
| Battery | Removable 36V 10Ah Lithium-ion battery with Samsung Battery Cells located behind seat post with lock and keys. Or upgrade to a 15Ah or 20Ah battery. Removable in seconds. Check battery charge by pushing the button on top of the battery. For additional safety the battery has a Battery Management System (BMS). |
| Brakes | Mechanical disc brakes TEKTRO Aries front 160mm rotor, mechanical TEKTRO v-brakes rear, |
| Control Panel | Kingmeter KM529 LCD display with 5 levels of pedal assist, odometer, speedometer, trip meter, lights button and voltage display to estimate battery charge level. |
| Lights | Integrated front and rear lights powered by the main battery |
| Reflectors | front and rear reflectors, spoke mounted wheel reflectors (orange), pedal reflectors (orange) |
| Handle-stem | Light-weight Alloy. Folds to side for easy storage. Can be adjusted up and down by several cm. The colour may be silver or black. |
| Handle-bar | Straight so that it's not in your way when folded to the side of the bike. The colour may be silver or black and matches wtih handle-stem colour. |
| Gears | 6 speed SHIMANO Tourney gears with thumb shifter on right-hand side handle-bar. Cassette (Freewheel) 14-28 tooth. |
| Tyres | Puncture-resistant Kenda K-Shield technology 20" tyres, 2.125" wide - with inner tube and reflective sidewall stripe for increased visibility in low-light conditions. |
| Fork | Front suspension fork |
| Rack | Rear rack with 25 kg carry capacity |
| Cranks | 48 tooth sprocket, Alloy, 170mm PROWHEEL with Pedal Assist Speed Sensor |
| Pedals | Wellgo foldable |
| Maximum Assisted Speed | 25 km/h |
| Mudguards | Front and rear PVC mudguards, silver color. Light-weight and rust-free, shape is resilient to impact |
| Weight | Bike weighs ~23.5 kg with battery, ~ 20.5 kg without battery, battery weighs ~3 kg |
| Carry capacity | Maximum payload of 120 kg. This includes rider and luggage. |
| Charger | 2A 36V charger - connect to standard wall power socket. 5-6 hours charge time if battery completely empty. Quicker charge time if battery is not completely empty. Battery can be charged at any time - it does not have to be completely empty. |
| Seat and Seatpost | Wide comfort seat by Velo. Seat-post folds up on demand to allow fast removal of battery. |
Text
Content
Electric Bike
Battery
Charger
Manual
Tools to help with assembly
Assembly manual
Buy with confidence
Leitner Electric Bikes are covered by a 2 year warranty against manufacturer faults of the frame and with a 1 year warranty against manufacturer faults of the electric parts. Warranty terms apply.
Once you receive the bike, if you are not completely satisfied, you are more than welcome to return it to us within 14 days. The bike must not show any signs of usage, must be in original packing and the buyer is responsible for all shipping costs. Return terms apply.
Please make sure you read the manual carefully before use! Leitner invests large amounts of time and resources into service and continuous improvement. Leitner eBikes are sold factory direct, so you can be sure of quality and value.
Images for illustration only. Actual product may vary slightly.
